Backstand Idlers

Spring & Air Tension


SPRING TENTIONED & AIR TENSIONED

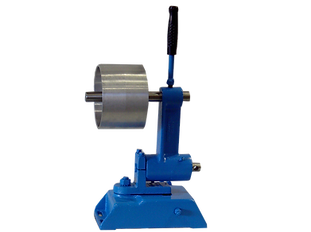

Model: SBS-4 Right Hand Shown

Model: ABS-HD Left Hand Shown

Model: ABS-HD Right Hand Show​n

TORO REPLACEMENT BACKSTAND IDLERS

Drop in replacement for Spring Tensioned Toro Backstand Idlers

Models and specifications for:

SBS & ABS-HD Series Pg. 2

TR-4 Toro Replacement Pg.3

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Always wear eye protection when grinding • Be sure all guards are in place

BACKSTAND IDLERS SERIES SBS (REPLACES RBS) -SPRING TENSION

The SBS series of backstandidlers offer an economical method of tensioning and abrasive belt for manual grinding applications.



Tension is provided by a torsion spring. The 6” dia. pulley is machined from an aluminum casting and rotates on sealed ball bearings. The arm and base of the backstand are made of cast iron.

Model SBS-4 for belts of 4” width or less

Model SBS-6 -for belts of 6” width or less

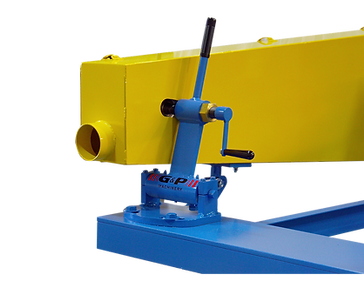

Table Height Adjustment

Accessories:



Angle Mounting Brackets

Shown on the front of this bulletin. When the backstandidler is to be at floor level, the angle mounting brackets position it at an angle that simplifies mounting a guard.

Pedestal

Provides a mounting for backstand idler at approximately the same height as the contact wheel.



Universal Joint

Provides the advantage of removing the tracking knob from the base of the backstand and repositioning it at the front of the machine within easy reach of the operator.

SERIES ABS-HD -AIR TENSIONED



The ABS-HD series is adequate for grinding applications where pressureassist units are used to apply grinding pressure. Tension is provided by a heavy duty air cylinder. The 9” dia. pulley is machined from an aluminum casting, & rotates on sealed ball bearings. The base of the unit is a weldment.



Model ABS-HD-4 for belts of 4” width or less

Model ABS-HD-6 -for belts of 6” width or less

TORO DROP-IN REPLACEMENT



Toro Drop-In ReplacementThe TR-4 and TR-5 are dimensionally identical to the old To ro Backstand Iders. The Idler pulleys are crowned aluminum. 9” diameter, and 4 1/4” (TR-4) or 6 1/4” (TR-6) wide. Tension is supplied via two torsion springs. Tracking is adjustable by rotating the idler pulley shaft, screwing it in or out. These Backstand Idlers are dimensionally equivalent to the old Toro Backstand Idlers, enabling them to be “dropped in” as replacements.


SPRING TENTIONED & AIR TENSIONED

Model: SBS-4 Right Hand Shown

Model: ABS-HD Left Hand Shown

Model: ABS-HD Right Hand Show​n

TORO REPLACEMENT BACKSTAND IDLERS

Drop in replacement for Spring Tensioned Toro Backstand Idlers

Models and specifications for:

SBS & ABS-HD Series Pg. 2

TR-4 Toro Replacement Pg.3

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Always wear eye protection when grinding • Be sure all guards are in place

BACKSTAND IDLERS SERIES SBS (REPLACES RBS) -SPRING TENSION

The SBS series of backstand idlers offer an economical method of tensioning and abrasive belt for manual grinding applications.



Tension is provided by a torsion spring. The 6” dia. pulley is machined from an aluminum casting and rotates on sealed ball bearings. The arm and base of the backstand are made of cast iron.

Model SBS-4 for belts of 4” width or less

Model SBS-6 -for belts of 6” width or less

Table Height Adjustment

Accessories:



Angle Mounting Brackets

Shown on the front of this bulletin. When the backstand idler is to be at floor level, the angle mounting brackets position it at an angle that simplifies mounting a guard.

Pedestal

Provides a mounting for backstand idler at approximately the same height as the contact wheel.



Universal Joint

Provides the advantage of removing the tracking knob from the base of the backstand and repositioning it at the front of the machine within easy reach of the operator.

SERIES ABS-HD -AIR TENSIONED



The ABS-HD series is adequate for grinding applications where pressure assist units are used to apply grinding pressure. Tension is provided by a heavy duty air cylinder. The 9” dia. pulley is machined from an aluminum casting, & rotates on sealed ball bearings. The base of the unit is a weldment.



Model ABS-HD-4 for belts of 4” width or less

Model ABS-HD-6 -for belts of 6” width or less

TORO DROP-IN REPLACEMENT



Toro Drop-In Replacement The TR-4 and TR-5 are dimensionally identical to the old Toro Backstand Iders. The Idler pulleys are crowned aluminum. 9” diameter, and 4 1/4” (TR-4) or 6 1/4” (TR-6) wide. Tension is supplied via two torsion springs. Tracking is adjustable by rotating the idler pulley shaft, screwing it in or out. These Backstand Idlers are dimensionally equivalent to the old Toro Backstand Idlers, enabling them to be “dropped in” as replacements.
